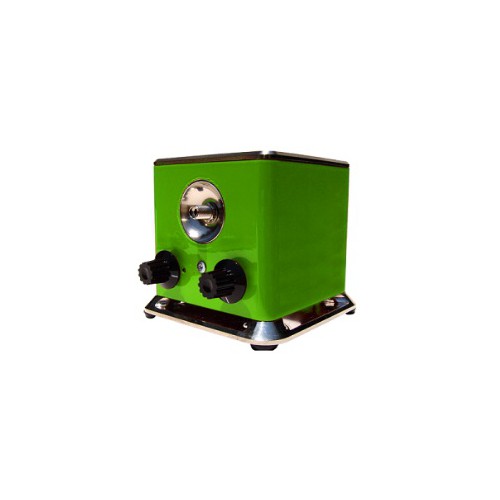

光纤耦合LED光源
|
Model |
Wavelength |
FWHM |
Min Power coupled into a 600 um .22NA fiber |
Maximum Drive Current (Continuous Mode) |
Maximum Drive Current (Pulsed Mode) |
Maximum Duty Cycle (Pulsed Mode) |
|
LLS-240 |
240 nm |
11 nm |
2 µW |
30 mA |
200 mA |
1% |
|
LLS-250 |
250 nm |
12 nm |
5 µW |
30 mA |
200 mA |
1% |
|
LLS-270 |
270 nm |
12 nm |
15 µW |
30 mA |
200 mA |
1% |
|
LLS-290 |
290 nm |
12 nm |
15 µW |
30 mA |
200 mA |
1% |
|
LLS-310 |
310 nm |
12 nm |
15 µW |
30 mA |
200 mA |
1% |
|
LLS-325 |
325 nm |
12 nm |
15 µW |
30 mA |
200 mA |
1% |
|
LLS-345 |
345 nm |
12 nm |
20 µW |
30 mA |
200 mA |
1% |
|
LLS-365 |
365 nm |
9 nm |
1 mW |
500 mA |
1000 mA |
50% |
|
LLS-385 |
385 nm |
10 nm |
1 mW |
500 mA |
1000 mA |
50% |
|
LLS-405 |
405 nm |
14 nm |
750 µW |
500 mA |
1000 mA |
50% |
|
LLS-455 |
455 nm |
20 nm |
1 mW |
1500 mA |
3000 mA |
50% |
|
LLS-470 |
470 nm |
25 nm |
1 mW |
1500 mA |
3000 mA |
50% |
|
LLS-505 |
505 nm |
30 nm |
1 mW |
1500 mA |
3000 mA |
50% |
|
LLS-530 |
530 nm |
35 nm |
750 µW |
1500 mA |
3000 mA |
50% |
|
LLS-590 |
590 nm |
14 nm |
750 µW |
700 mA |
1400 mA |
50% |
|
LLS-617 |
617 nm |
20 nm |
750 µW |
700 mA |
1400 mA |
50% |
|
LLS-627 |
627 nm |
20 nm |
750 µW |
700 mA |
1400 mA |
50% |
